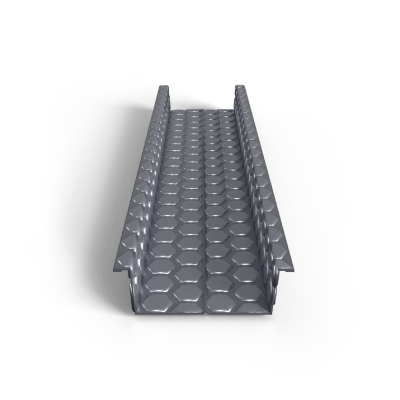

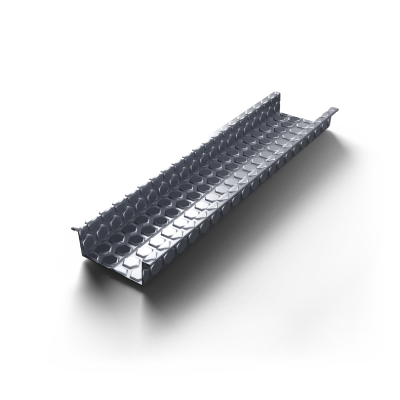

Express (Regular) Ceiling Section
Application
0.40mm thick, 80mm Wide
Having two flanges of 22mm each placed at 457mm centres
Express (Regular) Intermediate Channel
Application
0.70mm thick 45mm wide Having two flanges of each 14mm each placed at 90mm C/c
Express (Regular) Perimeter Channel
Application
0.40mm thick
23mm wide having two flanges of 19mm and 25mm.

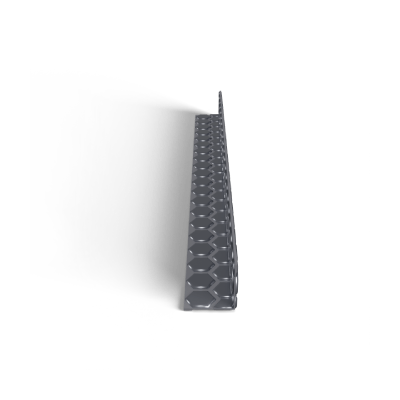

Express (Regular) Ceiling Angle
Application
0.40mm thick Having two flanges of 18mm & 18mm.
Standard Floor Channel
Application
0.45 mm thick
45mm wide having two flanges of each 32mm.
Dimension in (MM)
50 x 32 x 32 x 0.5 x 2440 | 50 x 32 x 32 x 0.5 x 3660 | 62 x 32 x 32 x 0.5 x 3660
72 x 32 x 32 x 0.5 x 3660 | 94 x 32 x 32 x 0.5 x 3660 | 148 x 32 x 32 x 0.5 x 3660
Standard Stud Channel
Application
0.45 mm thick
45mm wide having two flanges of each 32mm.
Dimension in (MM)
48 x 34 x 36 x 0.5 x 2440 | 48 x 34 x 36 x 0.5 x 2745 | 48 x 34 x 36 x 0.5 x 3050
48 x 34 x 36 x 0.5 x 3660 | 70 x 34 x 36 x 0.5 x 3050 | 70 x 34 x 36 x 0.5 x 3660
92 x 34 x 36 x 0.5 x 3050 | 92 x 34 x 36 x 0.5 x 3660 | 146 x 34 x 36 x 0.5 x 3660
